220V Condenser Tube Cleaning Machine Heat Exchanger Pipe Descaling Tool 24.9ft Flexible Shaft for Dia 0.2-0.8in Pipeline Tube Cleaner+High Pressure Washer Combo for HVAC Centrifugal Chiller

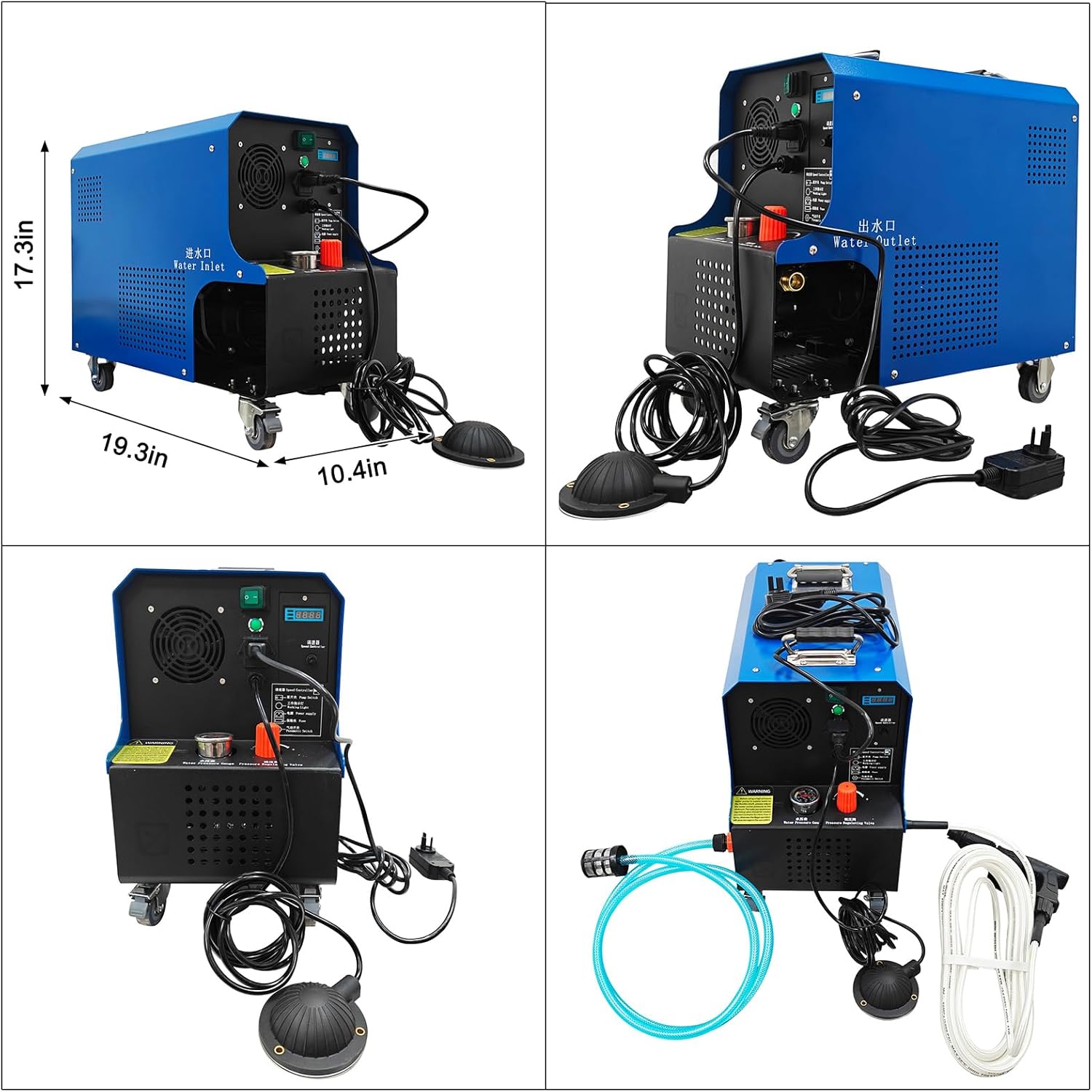

Package included: (022875) 1Set 220V Multifunctional Condenser Pipeline Cleaning Machine with 110V Transformer Parameters Voltage: 220V (One 110V to 220V transformer included) Power: Cleaning machine 370W + High pressure pump 1700W Rotating speed: 0-1400rpm Dia of flexible shaft: 0.5in Length of flexible shaft: 24.9ft Nylon brush: Φ22mm (0.9in) * 10pcs Applicable pipeline diameter: 6-20mm (0.2-0.8in) Quick connection water pipe: 65.6ft Foot switch: 3m (9.8ft) Rated water pressure: 100Bar Adjustable pressure range: 0-22Mpa Water volume: 7L/min High pressure water pipe: 8m (26.2ft) Self-suction hose: 1.8m (5.9ft) Size of the Condenser Pipeline Cleaning Machine: about 10.4x19.3x17.3 inches Net weight: 115.7LBs Operation Method 1. Setup Connect the flexible shaft, foot switch, and power cord to the main unit. Ensure the water inlet pipe is tightly connected to the flexible shaft and attach the other end to a tap. Screw the nylon brush onto the flexible shaft. 2. Operate the Flexible Shaft Fully unwind the shaft, extend it to the pipe inlet, then start the machine. Do not force the shaft into the pipe. If you feel strong resistance, pull it back slightly and then push forward again. 3. Self-Suction Mode Connect the high-pressure outlet pipe to the main unit’s water inlet, and place the other end in a water-filled container. Attach the pressure relief valve to the flexible shaft for automatic overpressure protection. Adjust pressure as needed. Note: Before start, turn the pressure regulating knob counterclockwise two full turns to prevent damage from high pressure. 4. High-Pressure Cleaning Connect one end of the high-pressure outlet pipe to the high-pressure gun and the other end to the unit’s water outlet. Turn on the switch to clean pipelines, cooling towers, and other components.

• Dual-functional Cleaning System: Combines high-torque 370W cleaning motor with powerful 1700W high-pressure pump (100Bar / 7L per min) for both mechanical descaling and hydraulic flushing. The integrated control panel features digital speed display with 0-1400rpm adjustable rotation, a pressure gauge, and a relief valve that automatically releases excess pressure, ensuring safe operation and preventing damage to delicate condenser tubes (applicable for 6-20mm / 0.2-0.8in diameter pipelines).

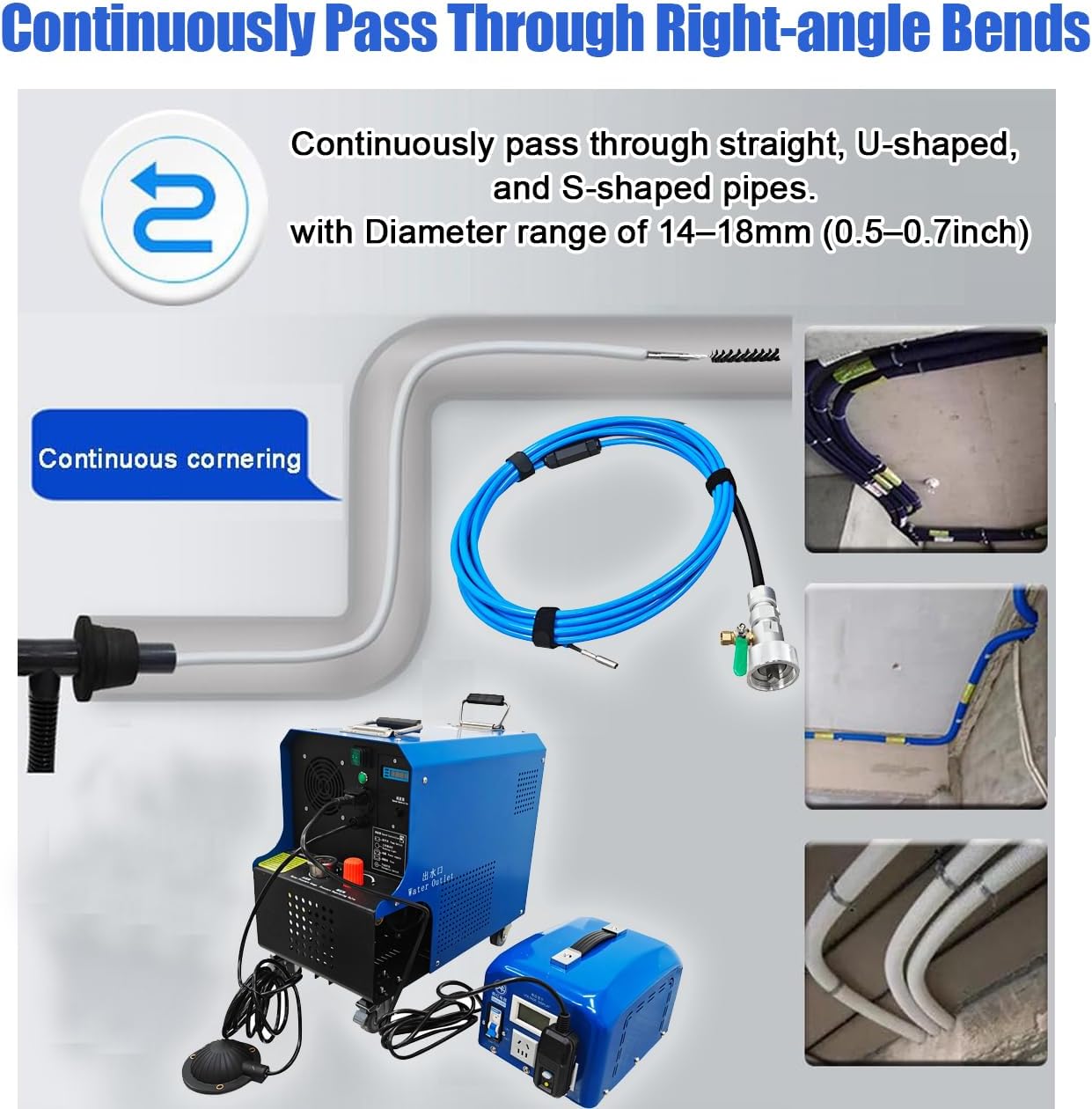

• Dry-wet Separation & Flexible Shaft: Engineered with dry-wet separation system that directs water directly into the flexible shaft, preventing leaks from damaging the main unit. The 24.9ft flexible shaft features a quick-connect design for rapid assembly, offering high flexibility to navigate straight, U-shaped and S-shaped pipelines without kinking, ideal for complex heat exchanger bundles.

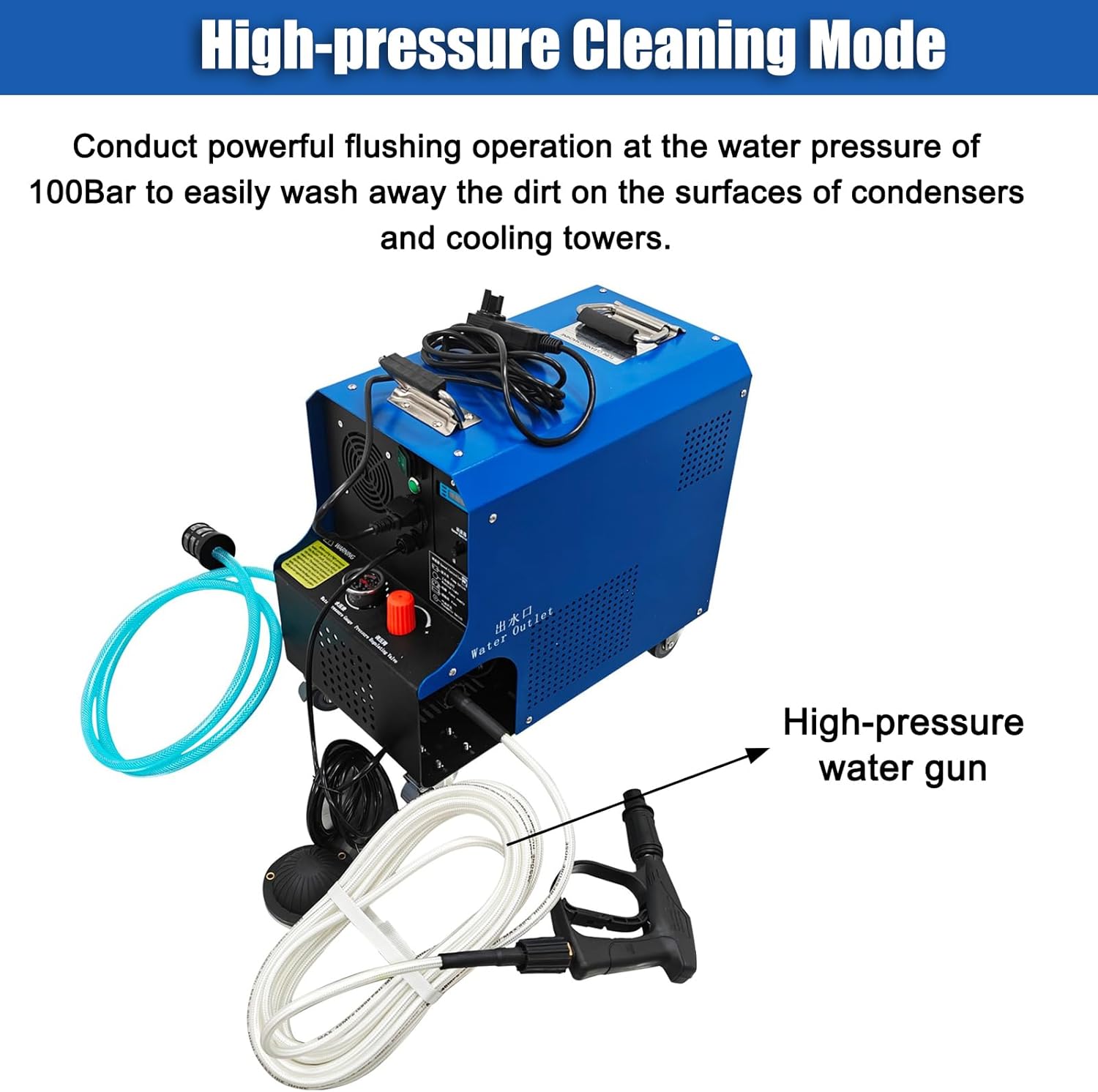

• Three Versatile Operating Modes: Tube Cleaning-rotating nylon brushes (Φ22mm) combined with water flow remove sludge, scale and rust. High-Pressure Rinsing: Delivers powerful 22Mpa adjustable pressure via the high-pressure water gun and 26.2ft hose for condensers and cooling towers. Self-Suction Mode: equipped with a 5.9ft suction hose and filter head, allowing operation from buckets or tanks when external tap water is unavailable.
• Safe & Durable Construction: Designed for professional efficiency with heavy-duty steel frame for stability, yet portable with integrated handles. Includes a waterproof foot switch with 9.8ft cable to free the operator's hands for precise pipe manipulation, enhancing safety and control during extended cleaning jobs on centrifugal chillers, screw chillers and marine oil coolers.
• Wide Compatibility & Accessories: Our 220V condenser tube cleaner is suitable for various industrial places. Comes complete with 65.6ft quick-connection water supply hose, 10 nylon brushes and a high-pressure water pipe. The corrosion-resistant design ensures reliable performance in demanding HVAC maintenance, effectively restoring heat exchange efficiency and preventing system pressure spikes caused by fouling.
